Draka by Prysmian Group
Optic Fibre Management Systems
Tees / Elbows / Crosses

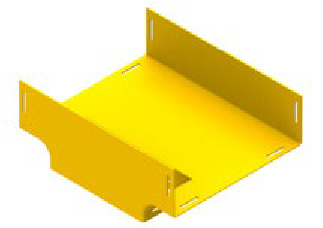

TC1279-75
50MM X 50 2” X 2” Horizontal tee
Available ModelsTC1279-224
100MM X 50 4” X 2” Horizontal teeTC1279-03
100MM X 100 4” X 4” Horizontal teeTC1279-01
220MM X 100 8” X 4” Horizontal teeTC1279-279
300MM X 100 12” X 4” Horizontal teeTC1279-412
600MM X 100 24” X 4” Horizontal tee
TC1279-75A
50MM X 50 2” X 2” Horizontal tee and cover
Available ModelsTC1279-224A
100MM X 50 4” X 2” Horizontal tee and coverTC1279-03A
100MM X 100 4” X 4” Horizontal tee and coverTC1279-01A
220MM X 100 8” X 4” Horizontal tee and coverTC1279-279A
300MM X 100 12” X 4” Horizontal tee and coverTC1279-412A
600MM X 100 24” X 4” Horizontal tee and cover
TC1279-316A
50MM X 50 2” X 2” 300mm-220mm Tee and cover
Available ModelsTC1279-09A
300MM X 100 12” X 4” 300mm-220mm Tee and cover
TC1279-398A
50MM X 50 2” X 2” 300mm-100mm Tee and cover
Available ModelsTC1279-393A
300MM X 100 12” X 4” 300mm-100mm Tee and cover

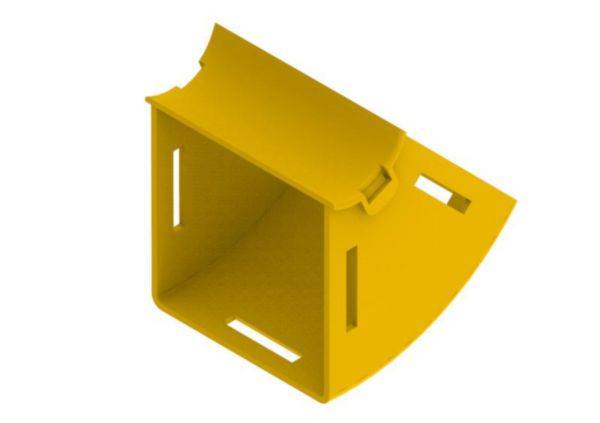

TC1279-77-30
50MM X 50 2” X 2” 30° Elbow
Available ModelsTC1279-47
100MM X 100 4” X 4” 30° ElbowTC1279-45
220MM X 100 8” X 4” 30° Elbow
TC1279-77-30A
50MM X 50 2” X 2” 30° Elbow and cover
Available ModelsTC1279-47A
100MM X 100 4” X 4” 30° Elbow and coverTC1279-45A
220MM X 100 8” X 4” 30° Elbow and cover

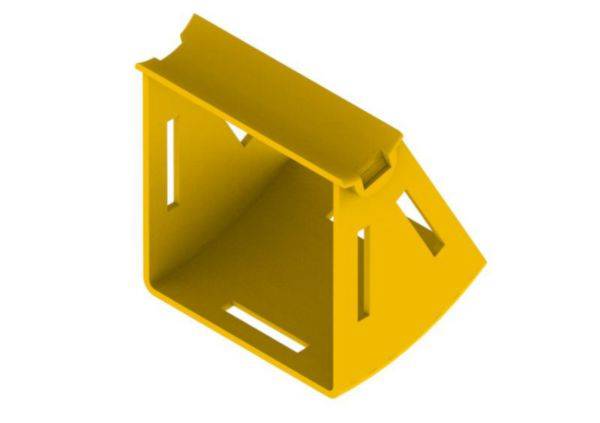

TC1279-77-45
50MM X 50 2” X 2” 45° Elbow
Available ModelsTC1279-31-45
100MM X 100 4” X 4” 45° ElbowTC1279-29-45
220MM X 100 8” X 4” 45° ElbowTC1279-304
300MM X 100 12” X 4” 45° ElbowTC1279-414
600MM X 100 24” X 4” 45° Elbow
TC1279-77-45A
50MM X 50 2” X 2” 45° Elbow and cover
Available ModelsTC1279-31-45A
100MM X 100 4” X 4” 45° Elbow and coverTC1279-29-45A
220MM X 100 8” X 4” 45° Elbow and coverTC1279-304A
300MM X 100 12” X 4” 45° Elbow and coverTC1279-414A
600MM X 100 24” X 4” 45° Elbow and cover
TC1279-77
50MM X 50 2” X 2” 90º Elbow
Available ModelsTC1279-269
100MM X 50 4” X 2” 90º ElbowTC1279-31
100MM X 100 4” X 4” 90º ElbowTC1279-29
220MM X 100 8” X 4” 90º ElbowTC1279-387
300MM X 100 12” X 4” 90º ElbowTC1279-411KIT
600MM X 100 24” X 4” 90º Elbow

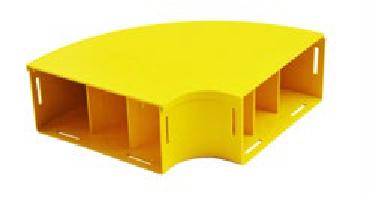

TC1279-77A
50MM X 50 2” X 2” 90º Elbow and cover
Available ModelsTC1279-269A
100MM X 50 4” X 2” 90º Elbow and coverTC1279-31A
100MM X 100 4” X 4” 90º Elbow and coverTC1279-29A
220MM X 100 8” X 4” 90º Elbow and coverTC1279-387A
300MM X 100 12” X 4” 90º Elbow and coverTC1279-411A
600MM X 100 24” X 4” 90º Elbow and cover
TC1279-139
50MM X 50 2” X 2” Horizontal cross
Available ModelsTC1279-234
100MM X 50 4” X 2” Horizontal crossTC1279-71
100MM X 100 4” X 4” Horizontal crossTC1279-61
220MM X 100 8” X 4” Horizontal crossTC1279-300
300MM X 100 12” X 4” Horizontal crossTC1279-416
600MM X 100 24” X 4” Horizontal cross
TC1279-139A
50MM X 50 2” X 2” Horizontal cross and cover
Available ModelsTC1279-234A
100MM X 50 4” X 2” Horizontal cross and coverTC1279-71A
100MM X 100 4” X 4” Horizontal cross and coverTC1279-61A
220MM X 100 8” X 4” Horizontal cross and coverTC1279-300A
300MM X 100 12” X 4” Horizontal cross and coverTC1279-416A
600MM X 100 24” X 4” Horizontal cross and cover
TC1279-65
100MM X 50 4” X 2” Reduction cross
Available ModelsTC1279-331
300MM X 100 12” X 4” Reduction cross
TC1279-65A
100MM X 50 4” X 2” Reduction cross and cover
Available ModelsTC1279-331A
300MM X 100 12” X 4” Reduction cross and cover
TC1279-396
100MM X 50 4” X 2” Reduction cross
Available Models(
TC1279-396
100MM X 50 4” X 2” Reduction cross )
TC1279-396A
100MM X 50 4” X 2” Reduction cross and cover
Available Models(
TC1279-396A
100MM X 50 4” X 2” Reduction cross and cover )
TC1279-145A
50MM X 50 2” X 2” drop and cover
Available Models(
TC1279-145A
50MM X 50 2” X 2” drop and cover )
